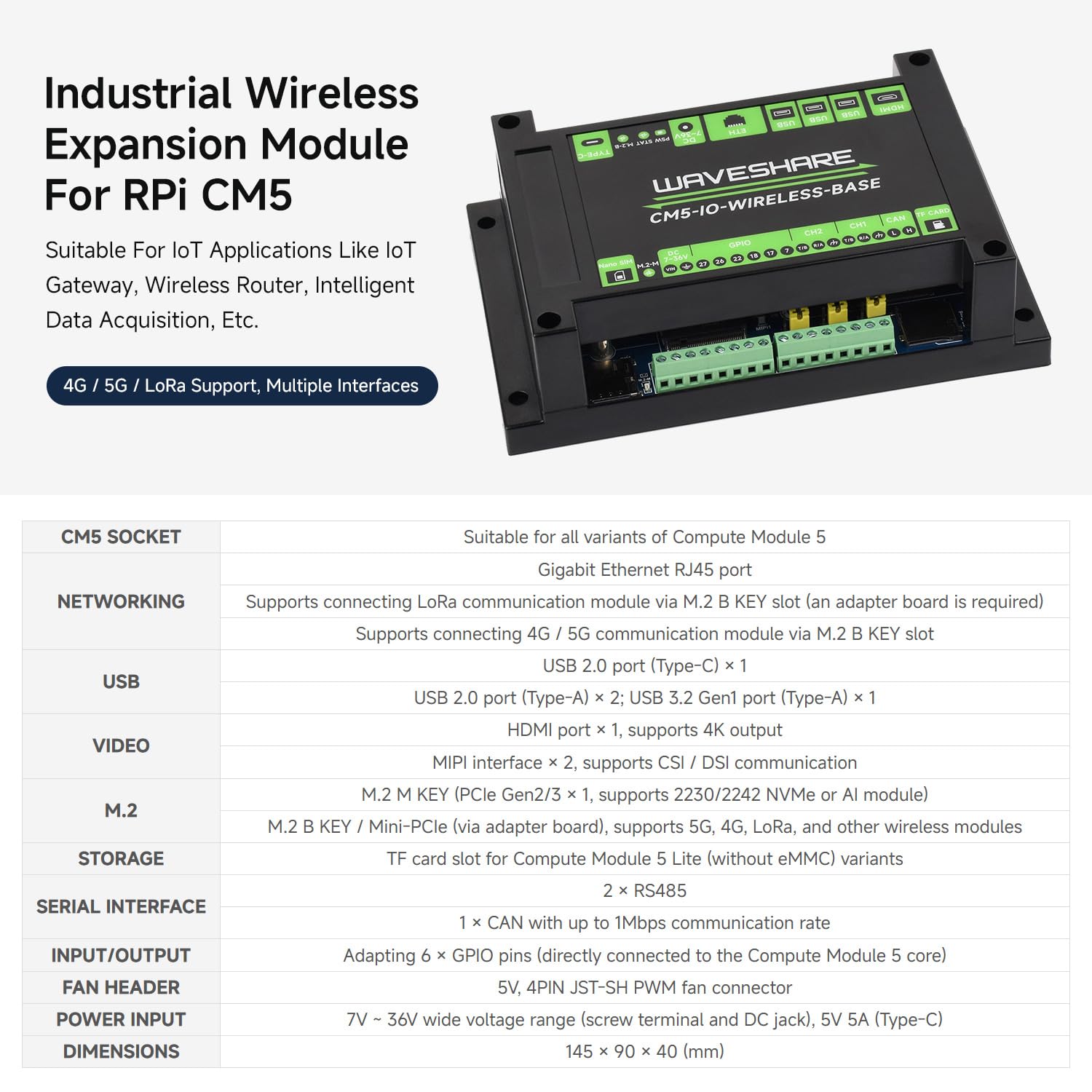

Waveshare Industrial IoT Wireless Expansion Board For Raspberry Pi CM5, 4G / 5G / Lora Expansion Support, Gigabit Ethernet RJ45 Port, Dual MIPI Interfaces, Supports 4K Output

Marca: Waveshare
Interfaz de tarjeta de gráficos: Integrado
Total de puertos USB: 4
Total de puertos Ethernet: 1
Fabricante: Waveshare

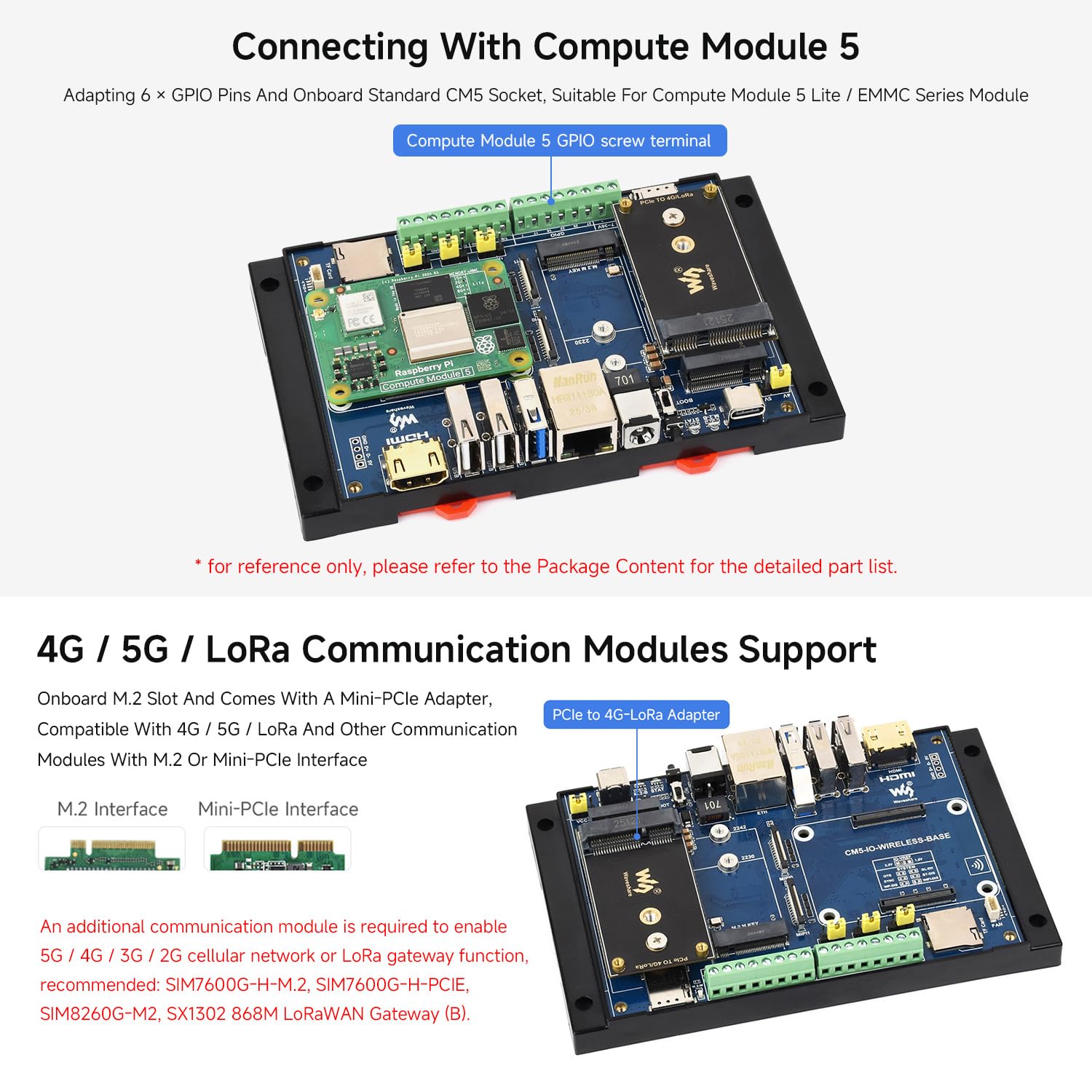

- Connecting With Compute Module 5: Adapting 6 × GPIO Pins And Onboard Standard CM5 Socket, Suitable For Compute Module 5 Lite / EMMC Series Module. Suitable For IoT Gateway, 4G / 5G Router, LoRa Gateway, IoT Data Acquisition And Monitoring, Industrial PLC, Or Other Industrial Applications
- 4G / 5G / LoRa Communication Modules Support: Onboard M.2 Slot And Comes With A Mini-PCIe Adapter, Compatible With 4G / 5G / LoRa And Other Communication Modules With M.2 Or Mini-PCIe Interface. (An additional communication module is required to enable 5G / 4G / 3G / 2G cellular network or LoRa gateway function,)

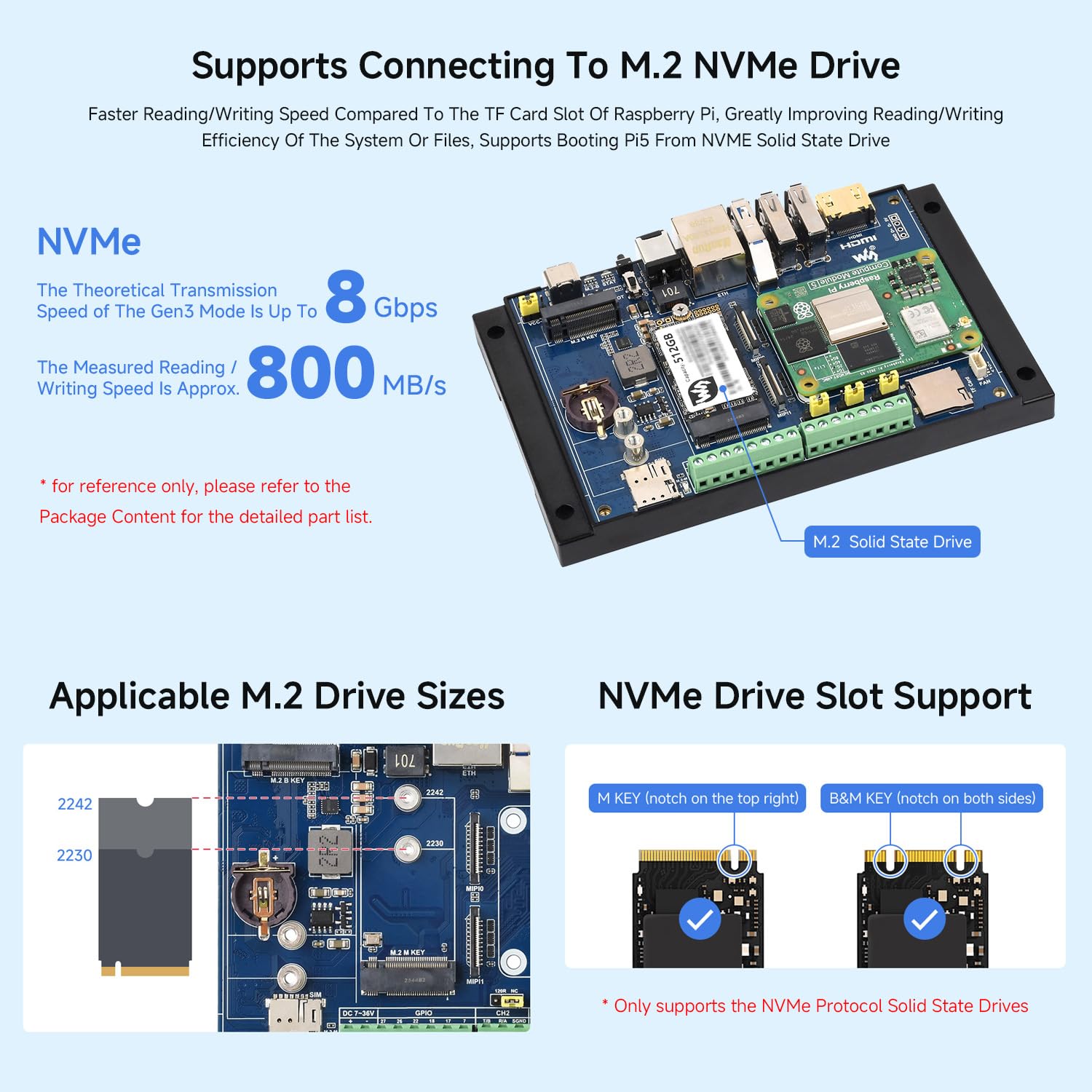

- Supports Connecting To M.2 NVMe Drive: Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive
- Applicable M.2 Drive Sizes. NVMe Drive Slot Support(Only supports the NVMe Protocol Solid State Drives)

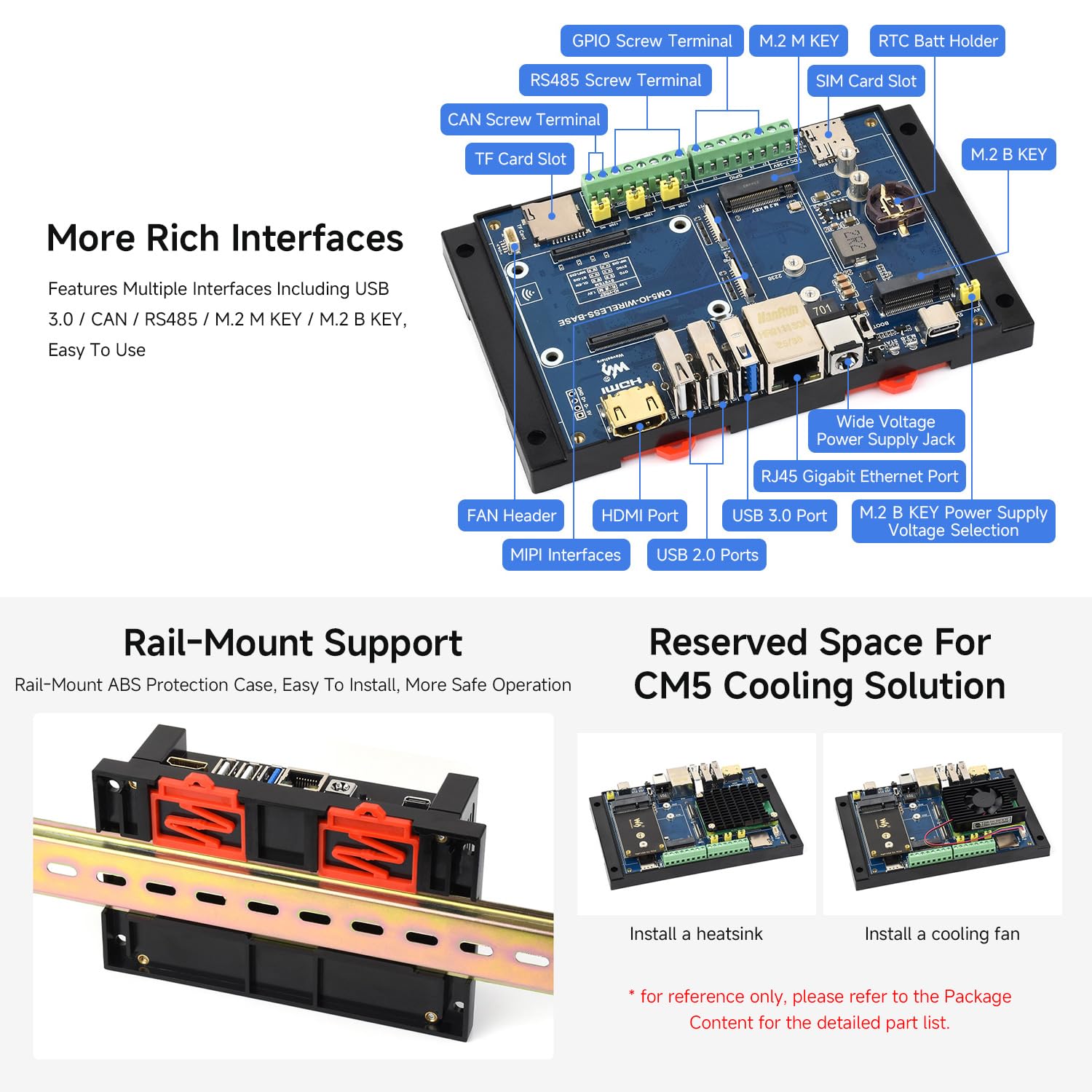

- More Rich Interfaces: Features Multiple Interfaces Including USB 3.0 / CAN / RS485 / M.2 M KEY / M.2 B KEY, Easy To Use. Reserved Space For CM5 Cooling(NOT included) Solution. Rail-Mount Support: Rail-Mount ABS Protection Case, Easy To Install, More Safe Operation
